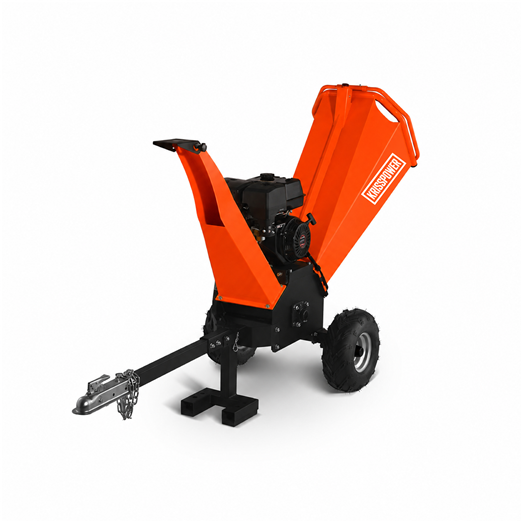

Wood Chipper – 120 mm Capacity

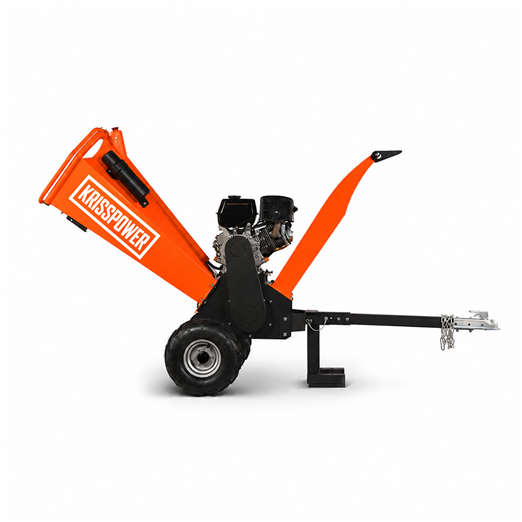

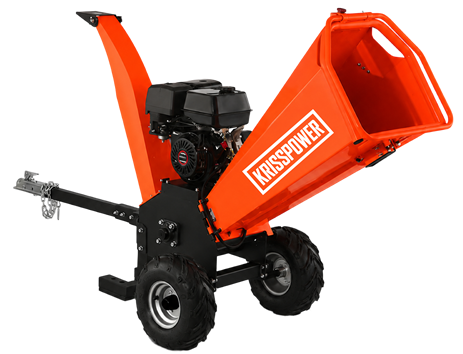

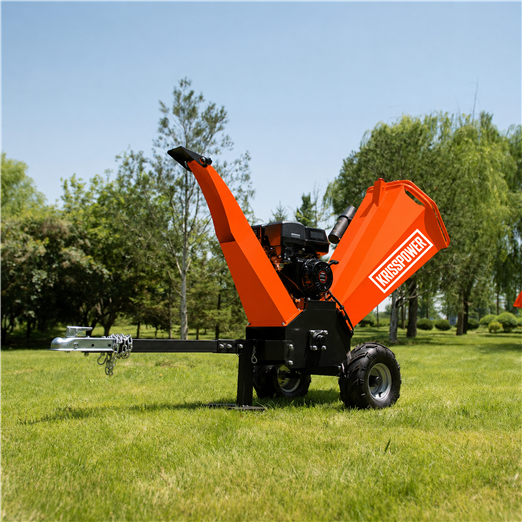

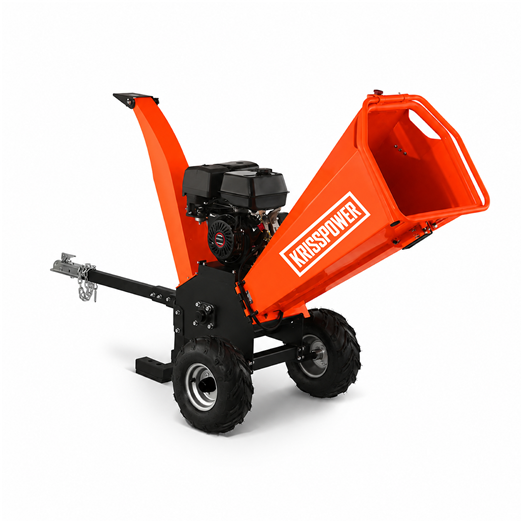

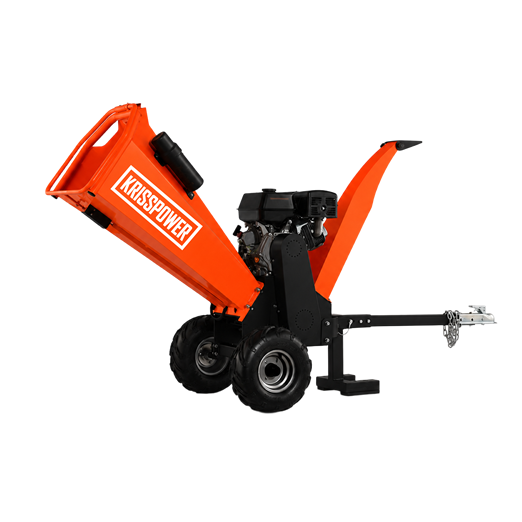

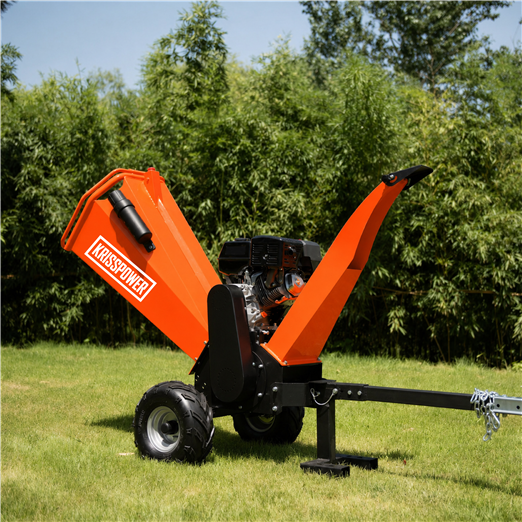

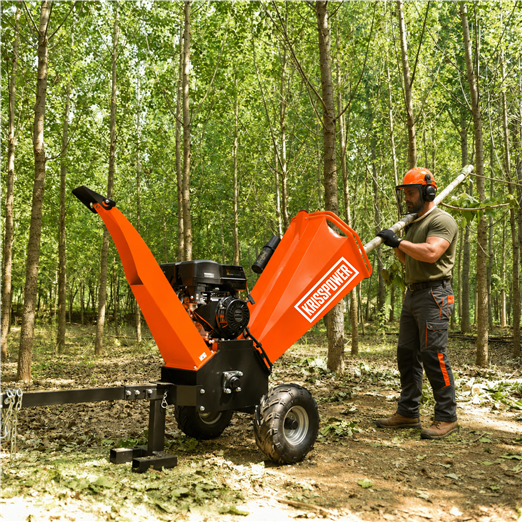

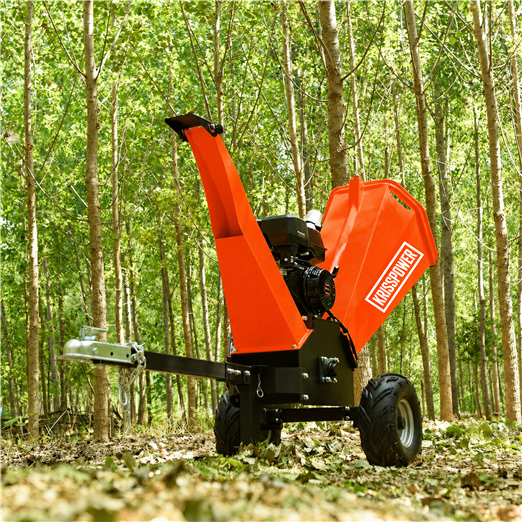

Designed for professional branch and green-waste processing, this heavy-duty 120 mm drum wood chipper is powered by a robust 420cc 15HP four-stroke petrol engine. It is well suited to landscaping contractors, arborists, farms, orchards and estate maintenance.
The drum cutting system uses 2 blades and 1 anvil for efficient, consistent chipping. A dual V-belt drive and centrifugal clutch provide reliable power transmission, while the 360° rotating discharge chute allows chips to be directed exactly where required. For improved operator safety, the machine is equipped with both a stop bar and emergency stop button.
A tow bar with 2-inch coupler and wide 16 × 8.0-7 tubeless tyres make the chipper easy to move between working areas.
Key Features
420cc 15HP four-stroke petrol engine
Recoil start and electric start
Maximum chipping diameter: 120 mm
Heavy-duty drum cutting system
2 blades + 1 anvil
Dual V-belt drive
Centrifugal clutch
Standard feeding chute
360° rotating discharge chute
Stop bar and emergency stop button
Tow bar with 2-inch coupler
16 × 8.0-7 tubeless tyres
Robust construction for professional use
| Engine Power | 420 cc; 15 hp |
| Start | Recoil / E-start |
| Cutting Method | Drum |
| Chipping Dia. | 120 mm |
| Knives Nos. | 2 × Blade; 1 × Anvil |
| Drive | Dual V‑belt |
| Clutch | Centrifugal Clutch |
| Feeding Chute | Standard |
| Discharge Chute | 360° Rotating |
| Emergency Stop | Stop Bar + Button |
| Towing | Tow Bar with 2" Coupler |
| Wheel | 16 × 8.0‑7 Tubeless Tire |
| Weight (N.W. / G.W.) | 189 / 212 kg |
| Package Method | Plywood Case |
| Packing Size (L×W×H) | 900 × 770 × 1230 mm |
| 40HQ Loading Qty. | 78 pcs |
