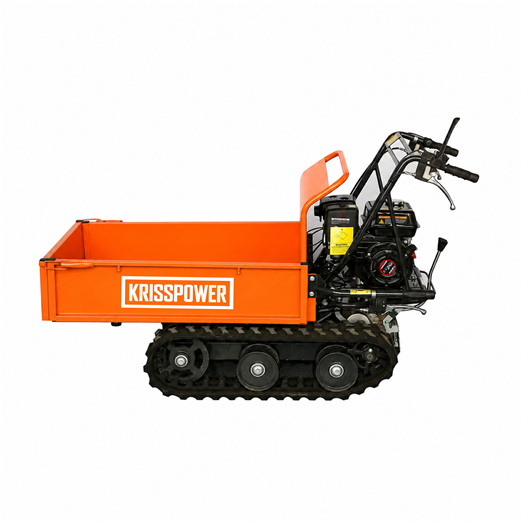

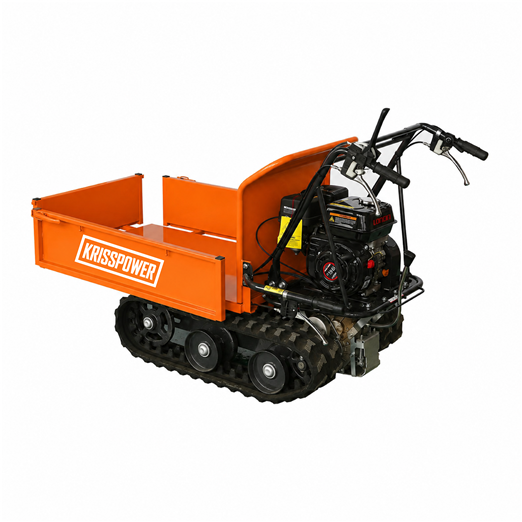

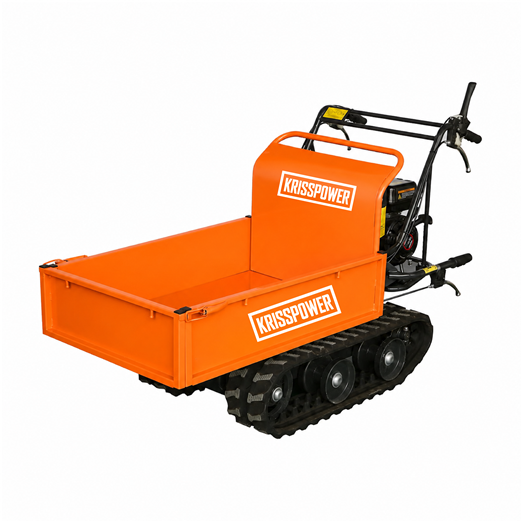

Mini Dumper – 300 kg Capacity

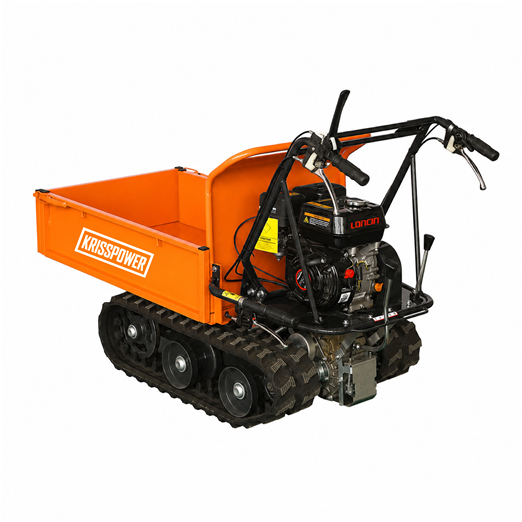

Designed for efficient material transport in landscaping, agriculture and construction, this compact mini dumper is powered by a reliable LONCIN 196cc 6.5HP OHV four-stroke petrol engine.

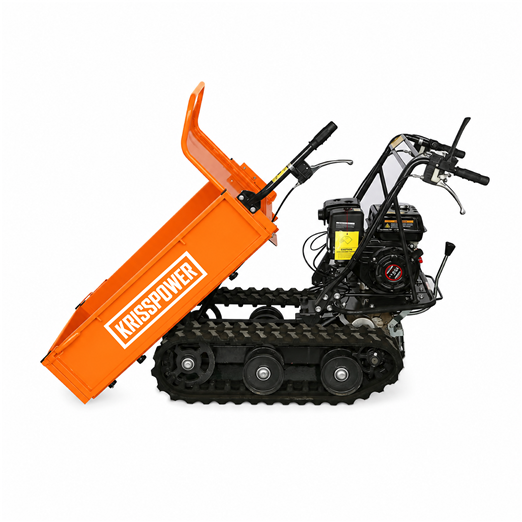

The 3-forward / 1-reverse mechanical transmission and lever-operated steering provide precise control in narrow or uneven working areas. A durable steel bucket and manual tipping system allow straightforward loading and unloading, while the automatic brake improves safety during operation.
With a maximum payload of 300 kg on level ground and 200 kg on slopes, the machine is suitable for transporting soil, gravel, sand, firewood and garden waste.
Key Features
LONCIN 196cc 6.5HP OHV petrol engine
Recoil start, with electric start available as an option
Maximum payload: 300 kg
Maximum slope payload: 200 kg
3 forward + 1 reverse transmission
Mechanical lever steering
Manual tipping system
Automatic braking system
Maximum admissible slope: 30°
Compact design for confined working areas
| Specification | Details |
| Motor | LONCIN 196CC 6.5HP |
| Type of Engine | OHV SINGLE CYLINDER 4 STROKE GASOLINE. |
| Transmission | 3F+1R |
| Starting System | RECOIL/ELECTRIC (OPTION) |
| Type of Transmission | MECHANICAL |
| Type of Direction | MECHANICAL WITH LEVERS |
| Working Speed Forwards / Backwards, Max | 3.6 / 1.2 km / h |
| Overall Dimensions | 1595 x 700 x 940 mm |
| Bucket Dimensions | 900*600*210mm |
| Dump System | MANUAL |
| Security System | WITH LEVER AND AUTOMATIC BRAKE |
| Max Load (Flat / Slope) | 300 KG / 200 KG |
| Admissible Slope | 30° |
| Unloaded Weight | 178 KG |
