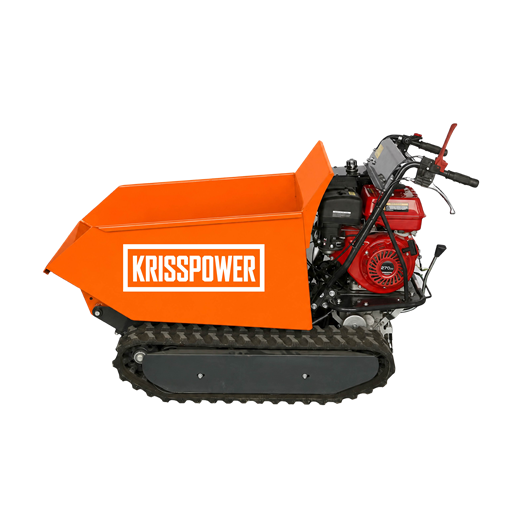

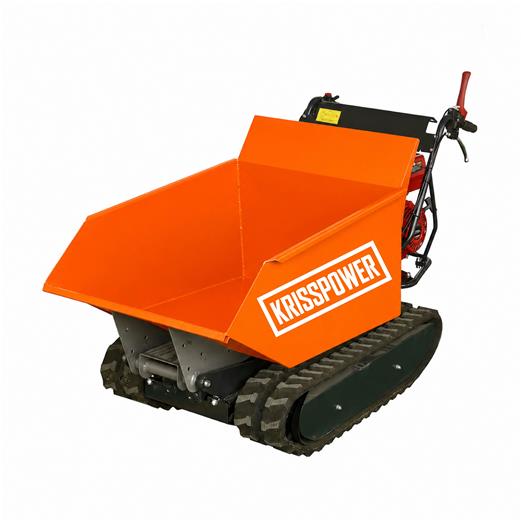

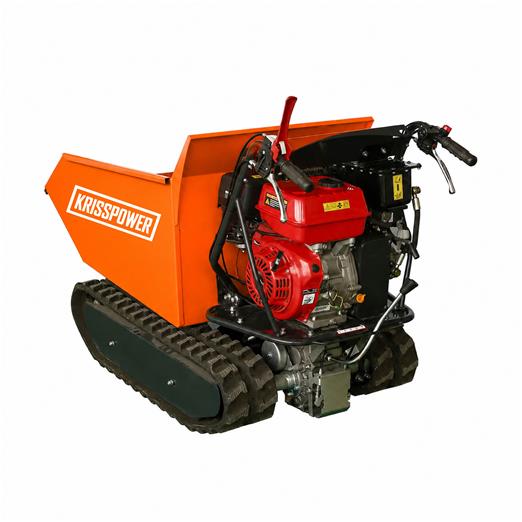

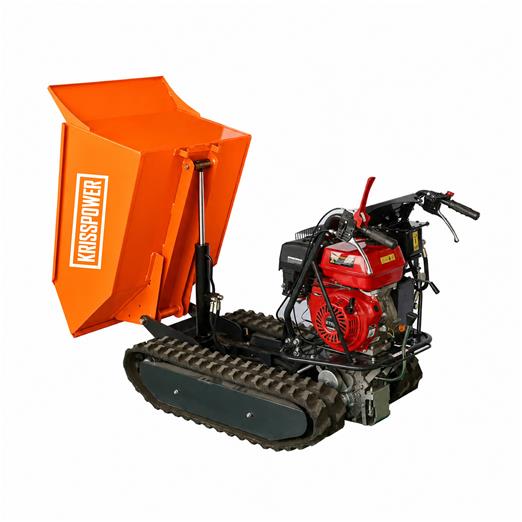

Mini Dumper – 500 kg Hydraulic Tip
Designed for professional material handling, this 500 kg mini dumper is powered by a dependable LONCIN 270cc 9HP OHV four-stroke petrol engine, delivering the power and reliability required for construction, landscaping, agriculture and estate maintenance.
The 3-forward / 1-reverse mechanical transmission provides smooth operation and reliable traction, while the mechanical lever steering ensures precise manoeuvrability in confined or uneven working areas. Equipped with a hydraulic tipping system, the dumper enables fast, effortless unloading, improving productivity on demanding jobs. The integrated automatic braking system enhances safety, particularly when working on gradients.
With a maximum payload of 500 kg on level ground and 375 kg on slopes, this machine is ideal for transporting soil, gravel, sand, firewood and other bulk materials.
Key Features
LONCIN 270cc 9HP OHV four-stroke petrol engine
Recoil start, with electric start available as an option
3 forward + 1 reverse mechanical transmission
Maximum travel speed: 3.6 km/h forward / 1.2 km/h reverse
Mechanical lever steering
Hydraulic tipping system
Lever-operated safety system with automatic brake
Maximum payload: 500 kg
Maximum payload on slopes: 375 kg
Maximum admissible slope: 30°
Heavy-duty steel construction for professional applications
| Specification / Parameter | |
| Motor | LONCIN 270CC 9HP |
| Engine Type | OHV Single Cylinder 4-Stroke Gasoline |
| Transmission | 3F + 1R (3 Forward, 1 Reverse) |
| Starting System | Recoil / Electric (Optional) |
| Type of Transmission | Mechanical |
| Working Speed (Max) | 3.6/1.2 km/h |
| Overall Dimensions (L×W×H) | 1770 × 770 × 1020 mm |
| Bucket Dimensions (L×W×H) | 1100 × 700 × 350 mm |
| Dump System | Hydraulic |
| Security System | With Lever and Automatic Brake |
| Type of Direction | Mechanical with Levers |
| Max Load (Flat / Slope) | 500 kg / 375 kg |
| Admissible Slope | 30° |
| Unloaded Weight | 280 kg |
