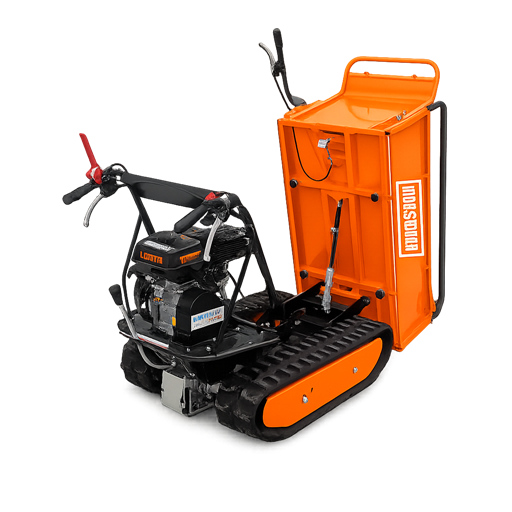

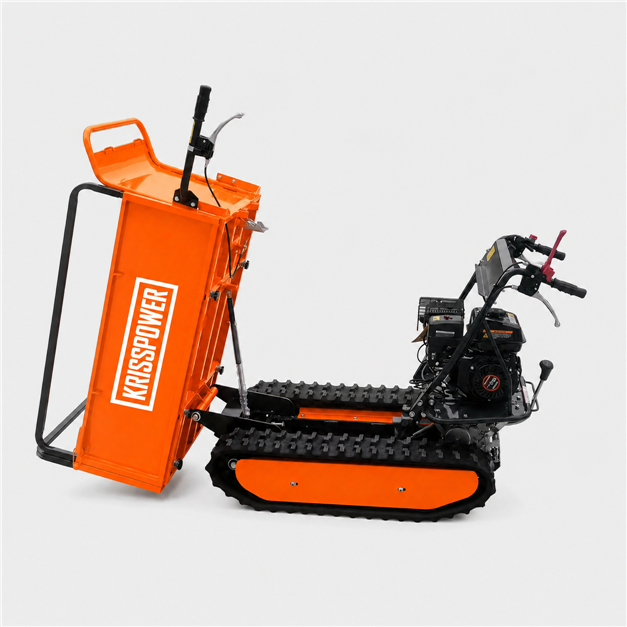

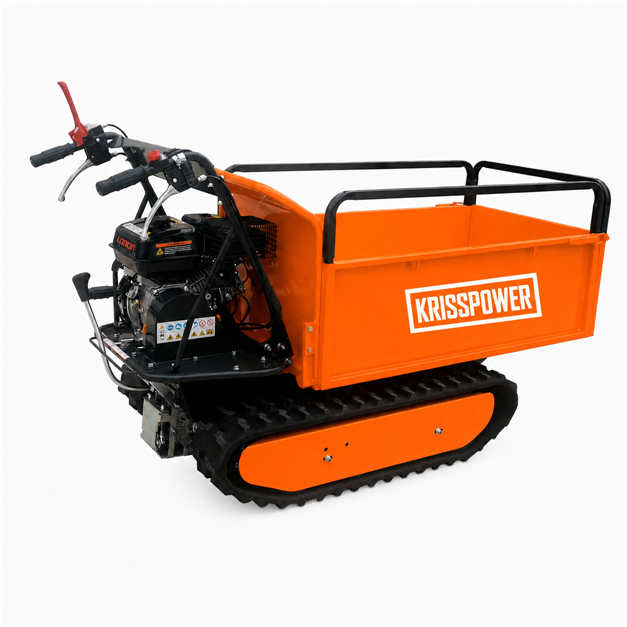

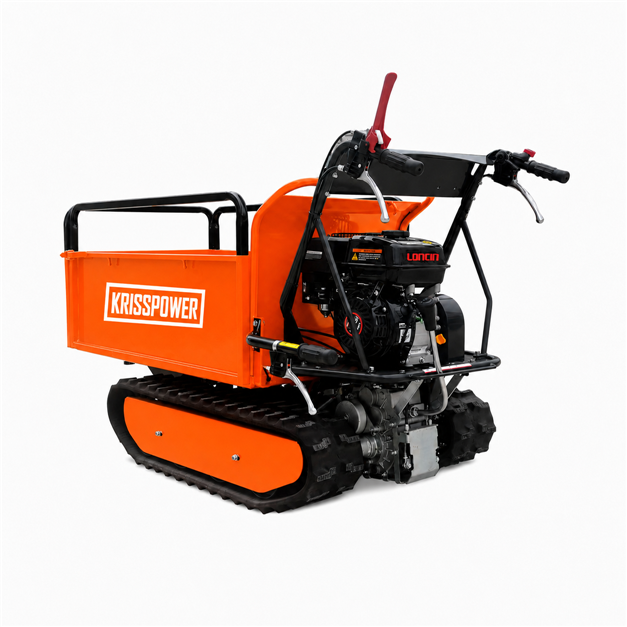

Mini Dumper – 500 kg Hydraulic Tip
Designed for professional material handling, this compact 500 kg mini dumper is powered by a reliable LONCIN 196cc 6.5HP OHV four-stroke petrol engine. It is suitable for transporting soil, gravel, sand, firewood and other bulk materials on construction sites, farms, estates and landscaping projects.
The 3-forward / 1-reverse mechanical transmission provides straightforward and dependable operation, while the mechanical lever steering offers precise control in narrow or uneven working areas. The hydraulic tipping system allows fast and effortless unloading, and the integrated automatic brake enhances safety during operation.
With a maximum payload of 500 kg on level ground and 375 kg on slopes, the machine is suitable for demanding daily use.
Key Features
LONCIN 196cc 6.5HP OHV four-stroke petrol engine
Recoil start, with electric start available as an option
3 forward + 1 reverse mechanical transmission
Maximum travel speed: 6 km/h
Mechanical lever steering
Hydraulic tipping system
Lever-operated safety system with automatic brake
Maximum payload: 500 kg
Maximum payload on slopes: 375 kg
Maximum admissible slope: 30°
Compact and robust design for professional applications
| Specification / Parameter | |
| Motor | LONCIN 196CC 6.5HP |
| Engine Type | OHV Single Cylinder 4‑Stroke Gasoline |
| Transmission | 3F + 1R (3 Forward, 1 Reverse) |
| Starting System | Recoil / Electric (Optional) |
| Type of Transmission | Mechanical |
| Working Speed (Max) | 6 km/h |
| Overall Dimensions (L×W×H) | 1770 × 770 × 1020 mm |
| Bucket Dimensions (L×W×H) | 1100 × 700 × 350 mm |
| Dump System | Hydraulic |
| Security System | With Lever and Automatic Brake |
| Type of Direction | Mechanical with Levers |
| Max Load (Flat / Slope) | 500 kg / 375 kg |
| Admissible Slope | 30° |
| Unloaded Weight | 280 kg |
