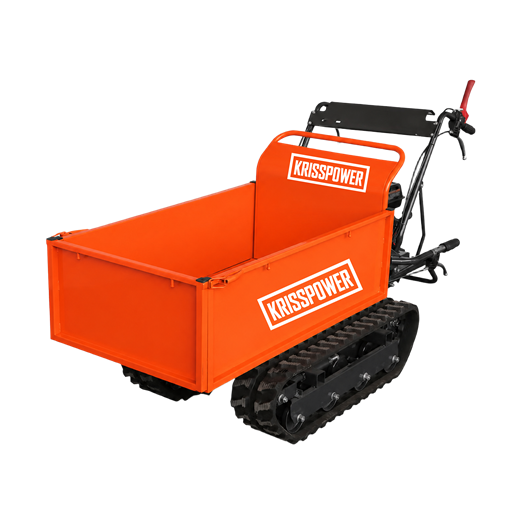

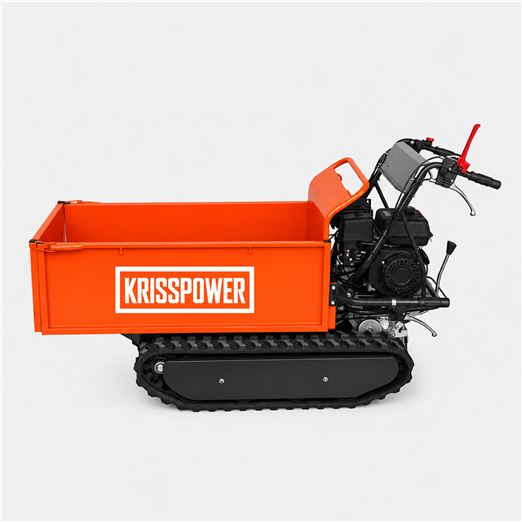

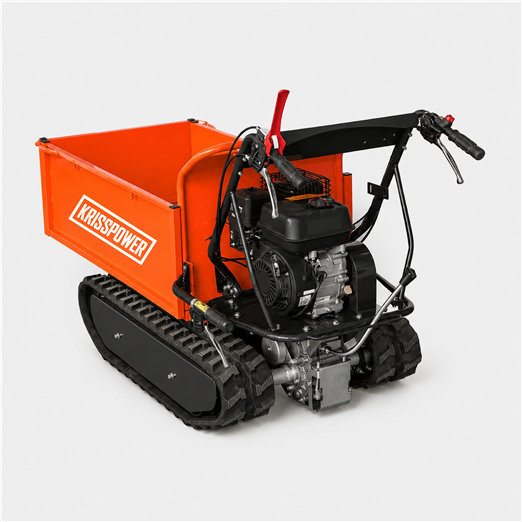

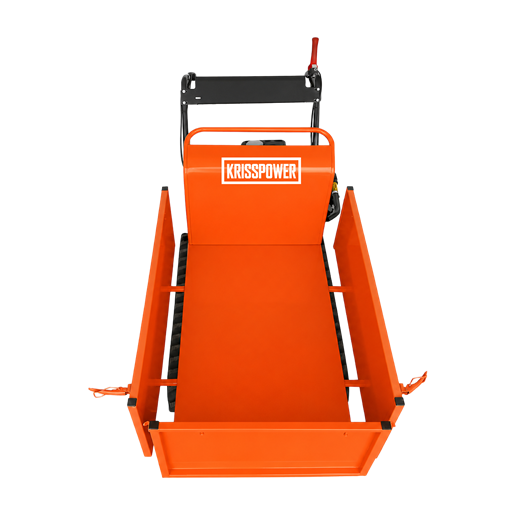

Mini Dumper 500BM

Mini Dumper 500BM
Inquire
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Model: 500BM Brand: KRISSPOWER
Product Description DATA Video
Product Description

SpecificationDetails
MotorLONCIN 270CC 9HP
Type of EngineOHV SINGLE CYLINDER 4 STROKE GASOLINE.
Transmission3F+1R
Starting SystemRECOIL/ELECTRIC (OPTION)
Type of TransmissionMECHANICAL
Type of DirectionMECHANICAL WITH LEVERS
Working Speed Max6 km / h
Overall Dimensions1770 x 770 x 1020 mm
Bucket Dimensions1100*700*350mm
Dump SystemManual
Security SystemWITH LEVER AND AUTOMATIC BRAKE
Max Load (Flat / Slope)500 KG / 375 KG
Admissible Slope30°
Unloaded Weight280KG


DATA
SpecificationDetails
MotorLONCIN 270CC 9HP
Type of EngineOHV SINGLE CYLINDER 4 STROKE GASOLINE.
Transmission3F+1R
Starting SystemRECOIL/ELECTRIC (OPTION)
Type of TransmissionMECHANICAL
Type of DirectionMECHANICAL WITH LEVERS
Working Speed Max6 km / h
Overall Dimensions1770 x 770 x 1020 mm
Bucket Dimensions1100*700*350mm

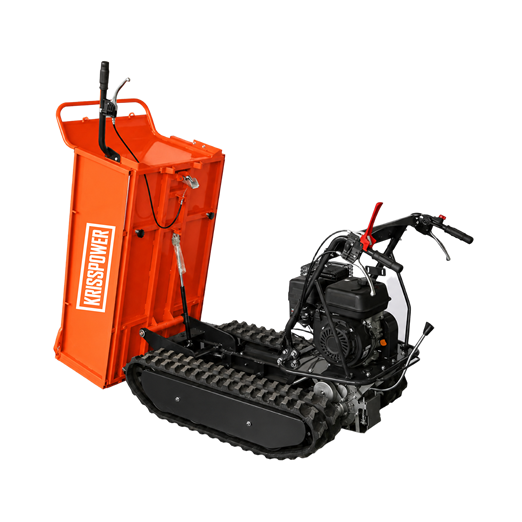

Dump SystemHYDRAULIC
Security SystemWITH LEVER AND AUTOMATIC BRAKE
Max Load (Flat / Slope)500 KG / 375 KG
Admissible Slope30°
Unloaded Weight280KG
