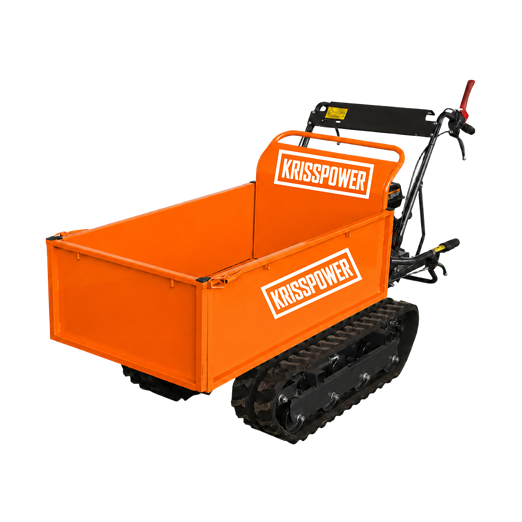

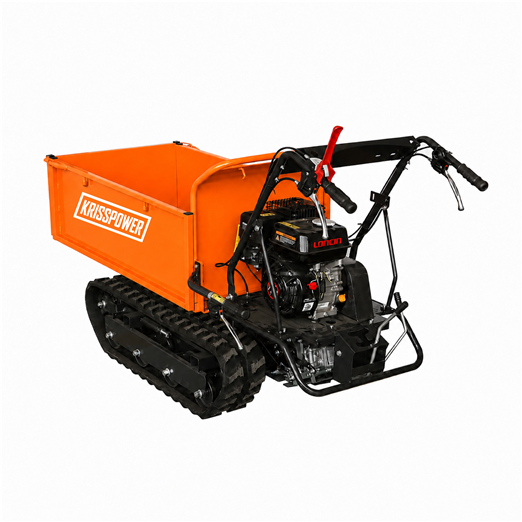

Mini Dumper – 300 kg Capacity
Designed for professional material transport, this compact mini dumper is powered by a reliable LONCIN 196cc 6.5HP OHV four-stroke petrol engine. It is suitable for moving soil, gravel, sand, firewood and other materials across construction sites, farms, gardens and landscaping areas.
The 6-forward / 2-reverse mechanical transmission provides flexible speed control, while mechanical lever steering ensures precise manoeuvrability in confined spaces. A manual tipping system allows straightforward unloading, and the integrated automatic brake enhances operational safety.
The machine offers a maximum load capacity of 300 kg on level ground and 200 kg on slopes, with an admissible working gradient of up to 30°.
Key Features
LONCIN 196cc 6.5HP OHV petrol engine
Recoil start, with electric start available as an option
6 forward + 2 reverse mechanical transmission
Maximum speed: 3.6 km/h forward / 1.2 km/h reverse
Mechanical lever steering
Manual tipping system
Lever-operated safety system with automatic brake
Maximum payload: 300 kg
Maximum payload on slopes: 200 kg
Maximum admissible slope: 30°
Compact, robust construction for professional use
| Item | Specification / Parameter |
| Motor | LONCIN 196CC 6.5HP |
| Engine Type | OHV Single Cylinder 4-Stroke Gasoline |
| Transmission | 6F + 2R (6 Forward, 2 Reverse) |
| Starting System | Recoil / Electric (Optional) |
| Type of Transmission | Mechanical |
| Working Speed(F/R): | 3.6 / 1.2 km/h |
| Overall Dimensions (L×W×H) | 1595 × 700 × 940 mm |
| Bucket Dimensions (L×W×H) | 900 × 600 × 210 mm |
| Dump System | Manual |
| Security System | With Lever and Automatic Brake |
| Type of Direction | Mechanical with Levers |
| Max Load (Flat / Slope) | 300 kg / 200 kg |
| Admissible Slope | 30° |
| Unloaded Weight | 225 kg |
