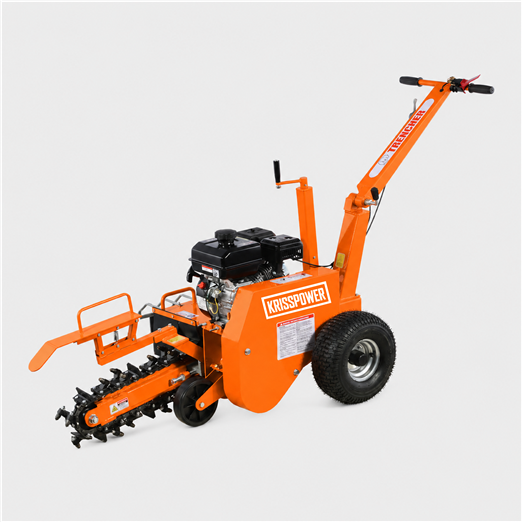

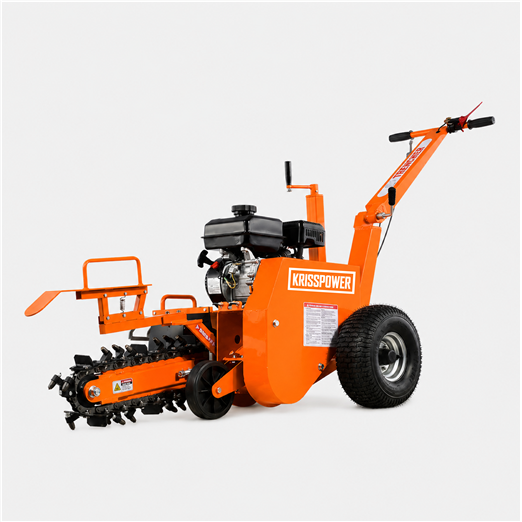

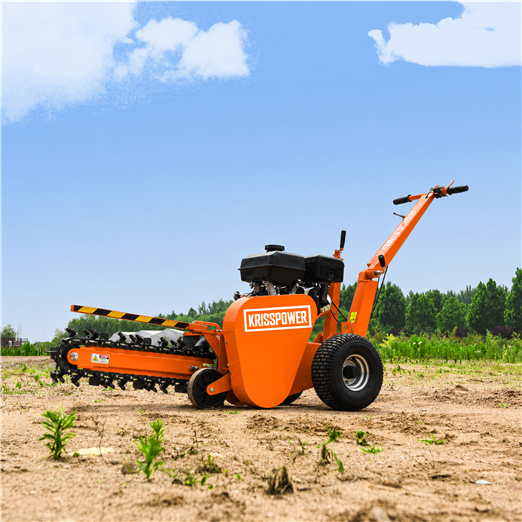

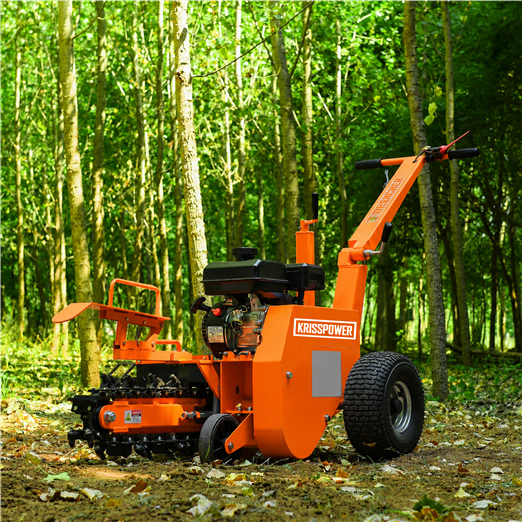

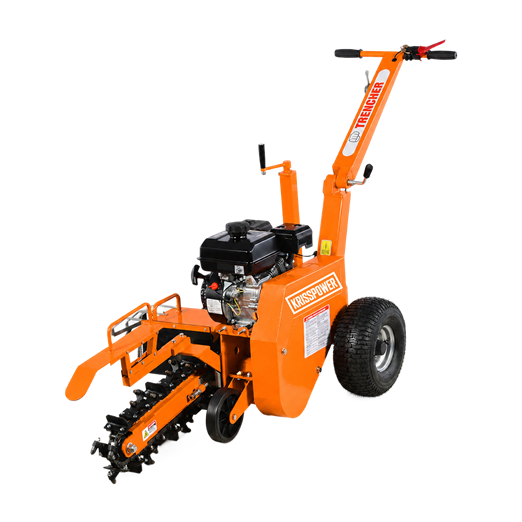

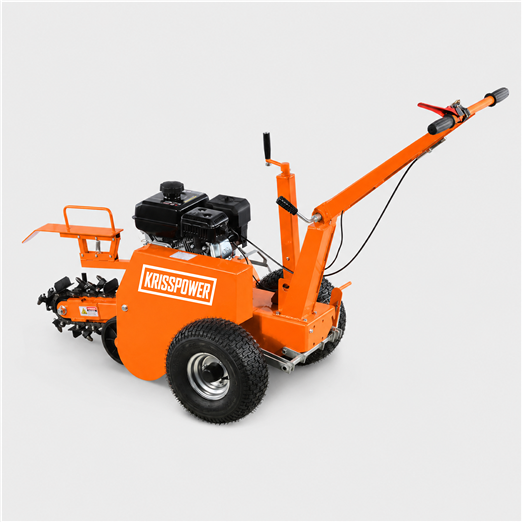

Mini Trencher – 15HP - MT600 -31002
Built for demanding trenching applications, this 15HP mini trencher delivers powerful performance for installing irrigation systems, drainage pipes, cables and underground utilities. Powered by a reliable DUCAR DH420E 420cc four-stroke OHV gasoline engine with electric start, it offers excellent productivity, durability and ease of operation.
Featuring an adjustable trenching depth of up to 600 mm and a 100 mm trench width, the machine is equipped with a carbide alloy digging chain, 27 heavy-duty cutting teeth and a Kevlar dual V-belt drive to ensure efficient digging and long service life, even in tough soil conditions.
Ideal for landscaping, agriculture, construction, irrigation and utility installation.
Key Features
DUCAR DH420E 420cc 15HP four-stroke OHV engine
Electric start for quick and easy operation
Adjustable trenching depth up to 600 mm
100 mm trench width
Carbide alloy chain with 27 heavy-duty cutting teeth
Kevlar dual V-belt drive with centrifugal clutch
Chain speed up to 550 m/min
Durable 42CrMo tooth holders for extended service life
Heavy-duty construction for professional applications
| MODEL | TCR1500 |
| SKU | 76002 |
| Engine | DUCAR DH420E |
| Engine Type | Single Cylinder, 4 Stroke, Air-Cooled, OHV |
| Displacement/ HP | 420cc; 15 HP |
| Start | E-Start |
| Belt | 2 x V-Belts |
| Belts Material | Kevlar |
| Clutch | Centrifugal Clutch |
| Carbide Tip | 27 x Carbide Alloy High-Pressure Teeth |
| Scraper | 9 Pcs |
| Tip Holder Material | 42CrMo |
| Trench Width | 100 mm |
| Trench Depth | 0 – 600 mm (Adjustable) |
| Blade Number | 27 pcs |
| Blade Material | Carbide Alloy |
| Chain Length | 2000 mm |
| Chain Speed | 550 m/min |
| Weight (Net) | 170 – 185 kg |
| Dimension (L×W×H) | 2100 × 720 × 1100 mm |
| Packing Method | Plywood Case |
| Gross Weight | 160 kg |
| Packing Size (L×W×H) | 1150 × 770 × 860 mm |
